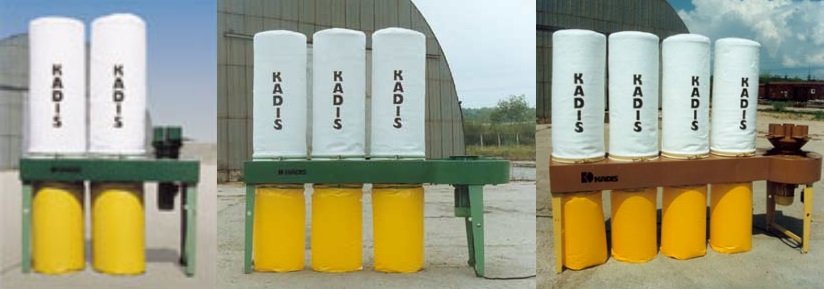

Wood-dust extractors remove shavings and dust from diverse working zones of wood treatment equipment and collect them in special bags. With the dust extractors the working environments are improved without loss of heat, as it takes in and returns the filtered air to the workshop.
|Suction capacity, m3/h||2800||4600||6000||6400|
|Total pression, mm VP||185||165||165||200|
|Volume of dust bags, m3||2×0,17||3×0,17||4×0,17||4×0,17|
|Diameter of suction openings, mm||225||280||315||350|
|Motor power, kW||3||4||5,5||7,5|
|Motor voltage, V||380||380||380||380|
|Overall dimensions, mm:
