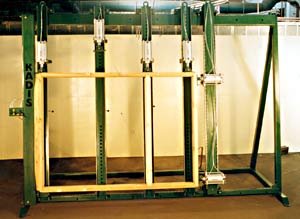

Frame presses RPK-1 and RPK-2 are designed for assembling and gluing window and door frames, plates and squared beams. The press mod. RPK-1 can be used for arched frames as well.

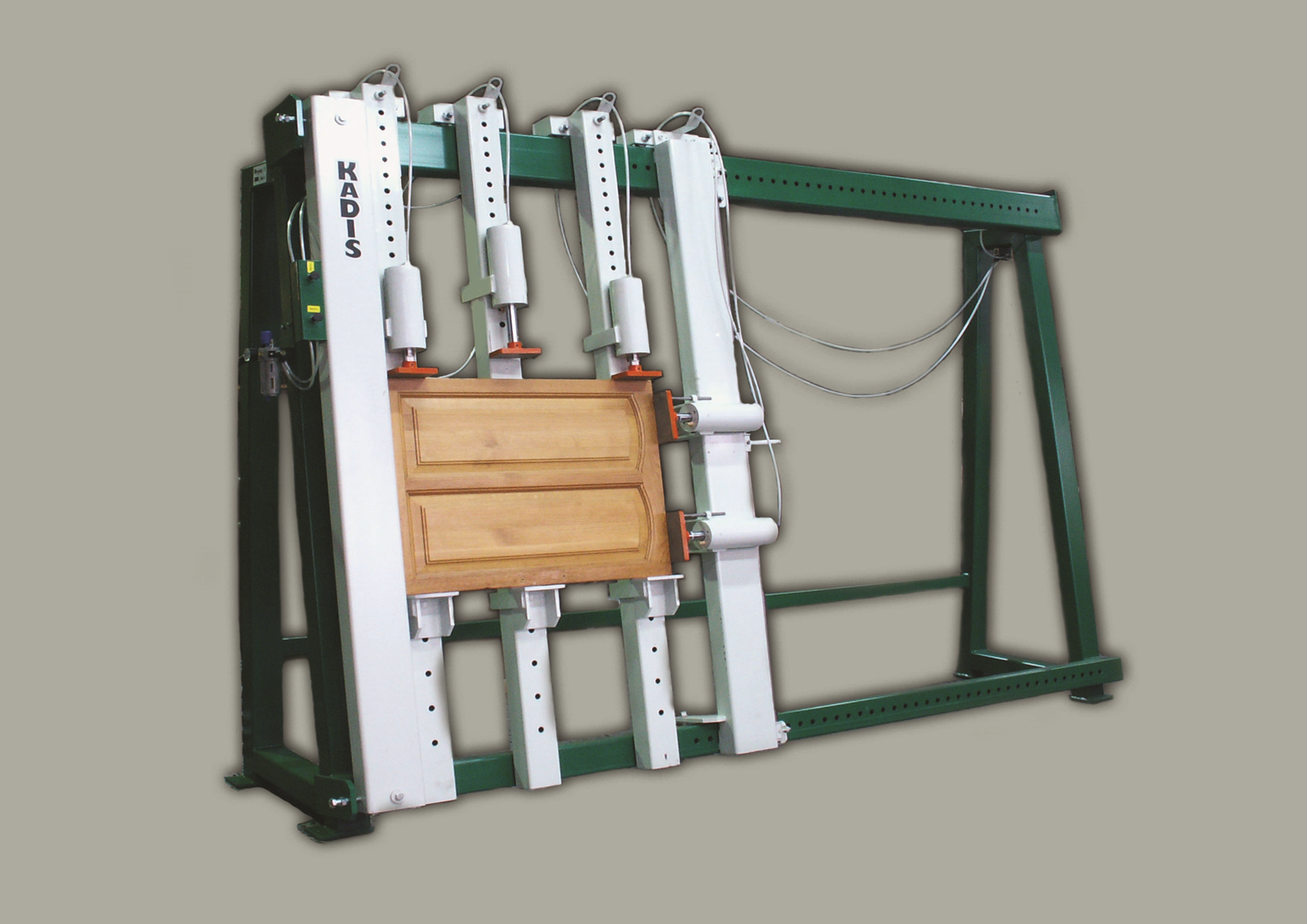

RPK-2
| TECHNICAL SPECIFICATIONS | RPK-1 | RPK-2 |
| Length of the glued product, mm: -minimum -maximum |
500 3000 |
500 2500 |
| Width of the glued product, mm: -minimum -maximum |
500 2000 |
500 1500 |
| Number of pneumatic cylinders, pcs. | 6 | 5 |
| Working air pressure, MPa | 0,1…0,8 | 0,1…0,8 |
| Maximum force achieved by the pneumatic cylinder, KN |
9,7 | 3 |
| Overal dimensions of the press LxBxH, mm | 4052x1900x3000 | 3239x917x2208 |
